CSPC050P | Griffco Valve 1/2″ PVC Corporation Stop – PVC – Viton
$503.00
CSPC050P | 1/2 inch PVC Corporation Stop – PVC Quill with Check Valve – Viton Seal & O-Rings
Guaranteed safe & secure checkout

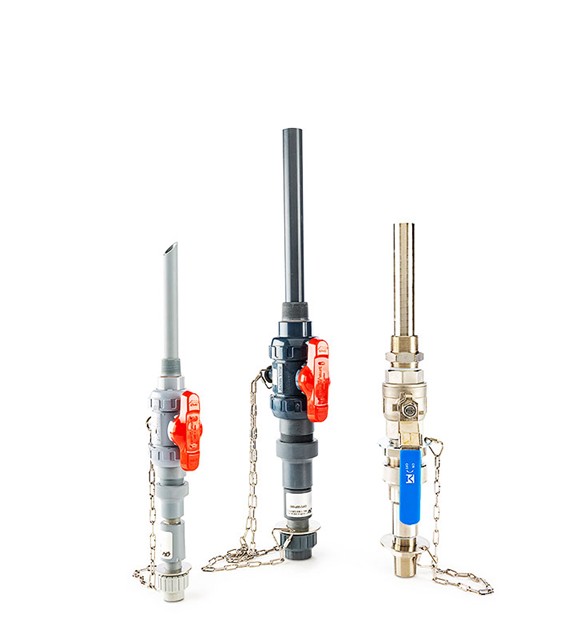

Griffco Valve Corporation Stops
CSPC050P | 1/2 inch PVC Corporation Stop – PVC Quill with Check Valve – Viton Seal & O-Rings
Griffco corporation stops (corp stops) are designed to ensure that chemical feed systems inject into the center of a process stream for better mixing and to prevent corrosion along the process pipe. They are also retractable and offer a ball valve to seal the process stream for servicing (when the process cannot be drained).
The integral check valve prevents the process fluid from going back up the chemical line. With limited seals and joints, this leak-free design is a sure fit for safety and long-life operation. Robust construction ensures reliability in the rigorous service of municipal and industrial applications.
Compact assembly for easier access and positioning
Sizes from 1/2″ to 1″ or DN 15 to DN 25
Pressures up to 150 psi (10 bar)
Integral check valve with Hast C Spring – Optional
Multiple tip configurations (duckbill, 45°, flat)
Seal options include EPDM and FKM (Viton®)
Connection options include plastic union or threaded
Fast and easy union disconnect for servicing
SS limit chains (when inserted and retract length)
Outer housing and valve material options include PVC, Brass, PVDF, CPVC,
and 316 SS
Optional secondary injection port
Optional chemical line drain
Custom quill lengths
Lock-ready design for tamper-resistant safety
Quill stiffener option for plastic construction
Optional redundant quill lock
Griffco Valve Corporation Stops
CSPC050P | 1/2 inch PVC Corporation Stop – PVC Quill with Check Valve – Viton Seal & O-Rings
Griffco corporation stops (corp stops) are designed to ensure that chemical feed systems inject into the center of a process stream for better mixing and to prevent corrosion along the process pipe. They are also retractable and offer a ball valve to seal the process stream for servicing (when the process cannot be drained).
The integral check valve prevents the process fluid from going back up the chemical line. With limited seals and joints, this leak-free design is a sure fit for safety and long-life operation. Robust construction ensures reliability in the rigorous service of municipal and industrial applications.
| Weight | 2 lbs |
|---|---|
| Dimensions | 18 × 4 × 4 in |
